Description

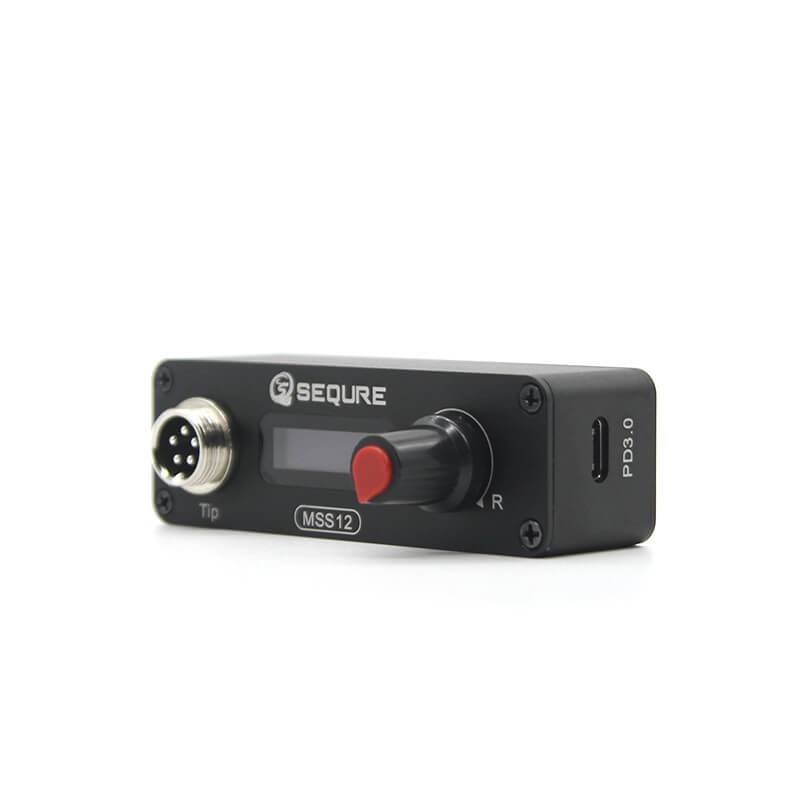

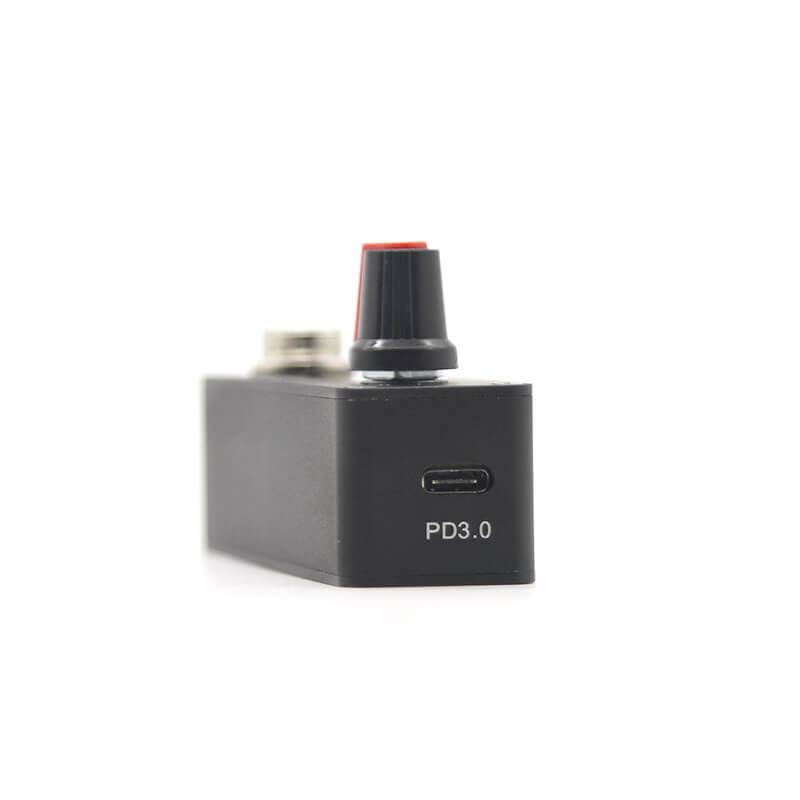

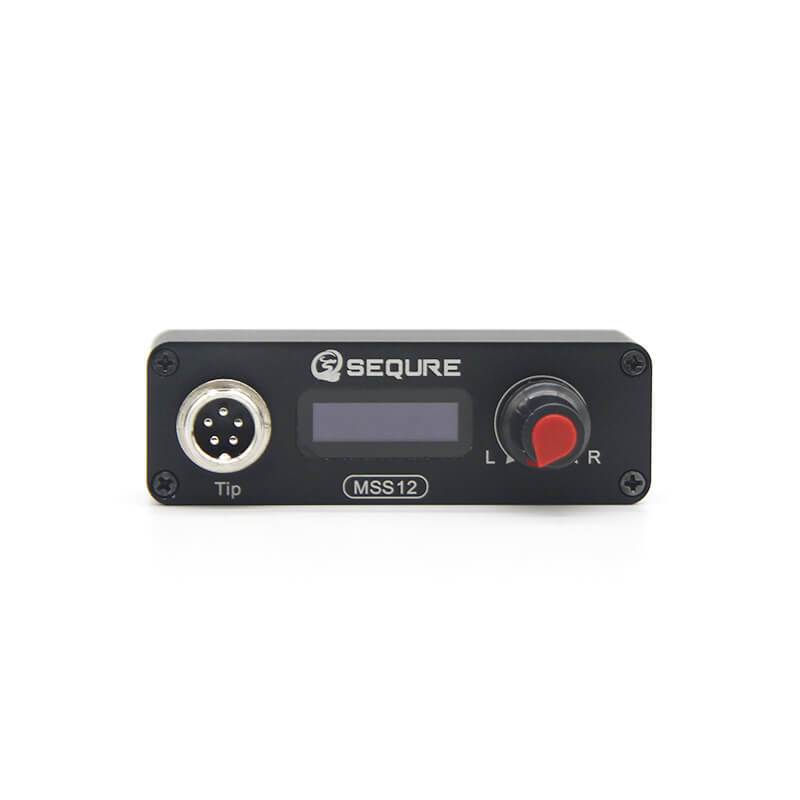

MSS12 mini soldering station comes with 0.91 inch OLED display, supports PD3.0, DC5525 12V-25V/3S-6S power supply, programmable firmware upgrade, Celsius and Fahrenheit switching, compatible with T12 soldering iron tips, the temperature can be calibrated and compensated, and the intelligent temperature control can reach plus or minus 1 degree.
Technical Parameters
- Working temperature: 100℃-450℃/212℉-842℉
- Temperature unit: ℃/℉
- Menu display: 0.91 inch OLED

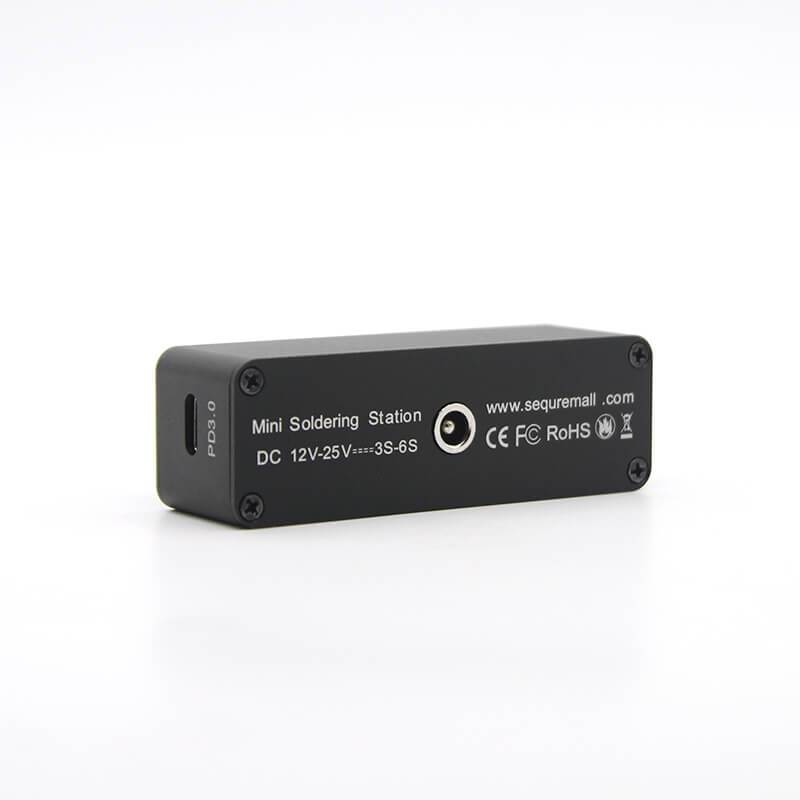

- Working voltage: DC12V-25V/3S-6S
- Shell material: aluminum alloy
- Sleep wake: support
- Protection reminder: support
- Firmware upgrade: support
- Temperature calibration: support
- Screen flip: support

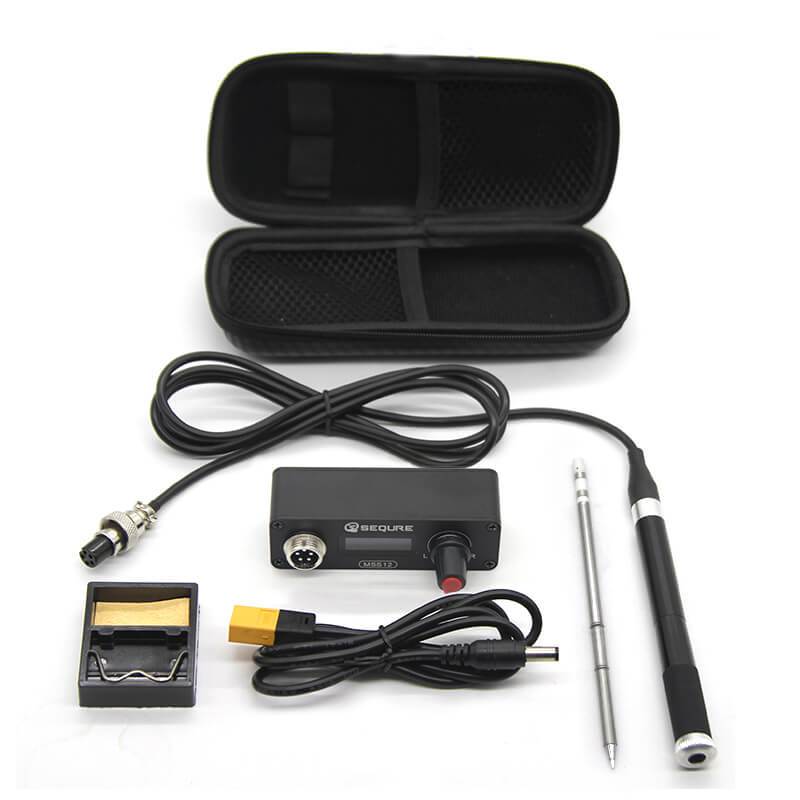

Package Includes
- Host×1
- Handle×1
- Soldering iron tip×1
- Soldering iron stand×1
- Manual×1

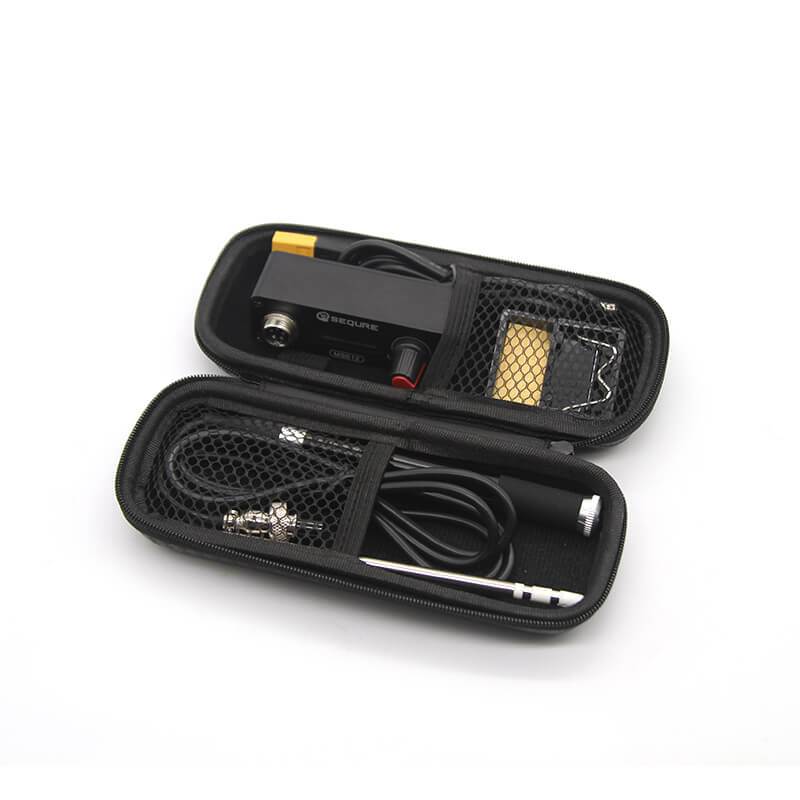

- Storage bag×1
- XT60 power cord×1
Please note:
- Does not include power supply or battery.

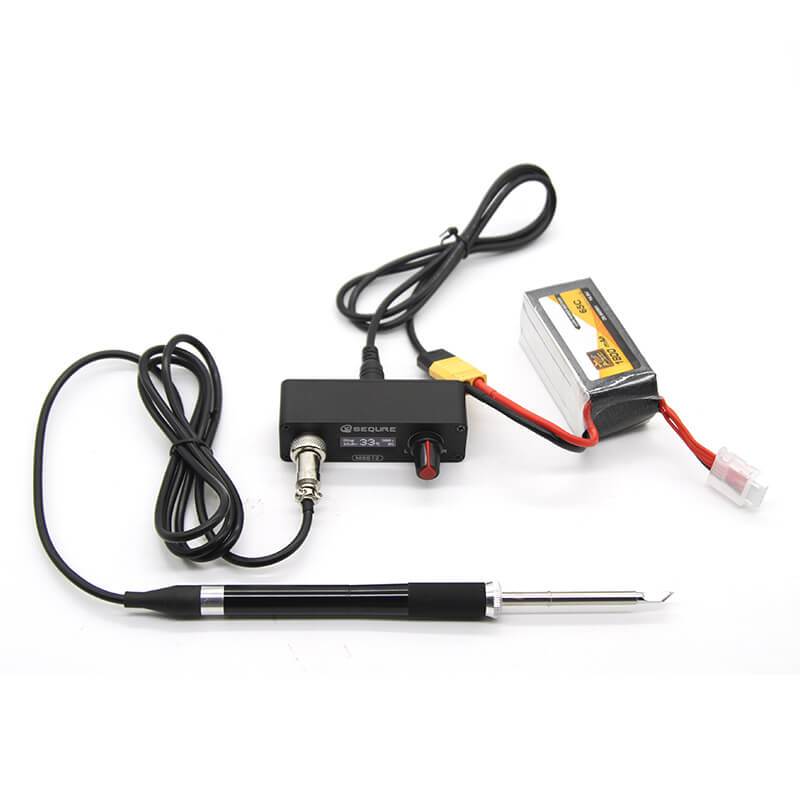

- Photo of 18650 battery is indicative only - it DOES NOT power using an 18650 batttery

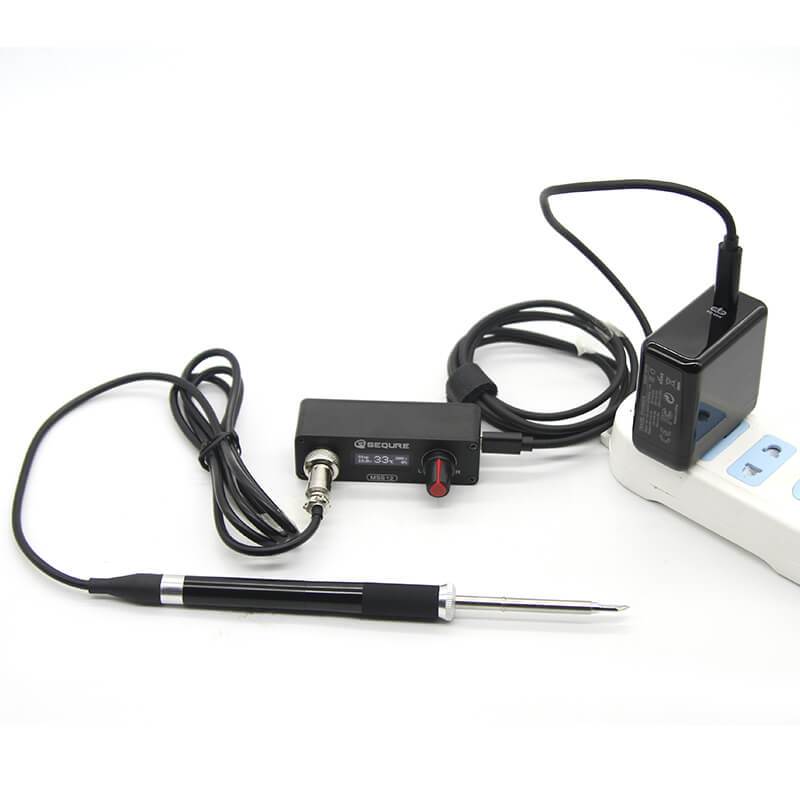

Looking for a power supply?
MBEAT GORILLA POWER 45W USB-C POWER DELIVERY (PD 2.0) AND DUAL USB A WORLD TRAVEL CHARGER

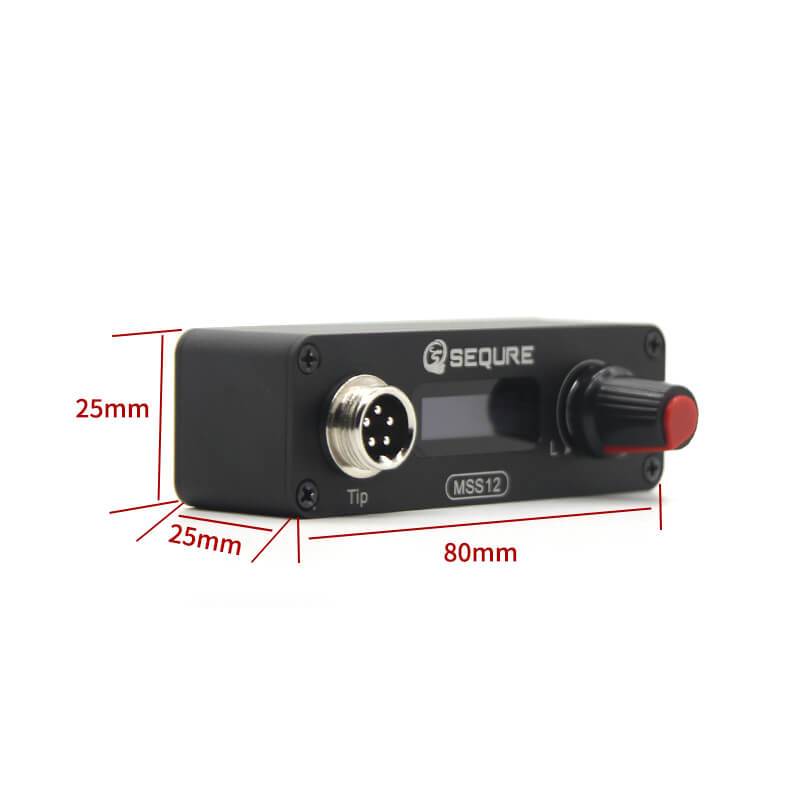

Overall Dimension

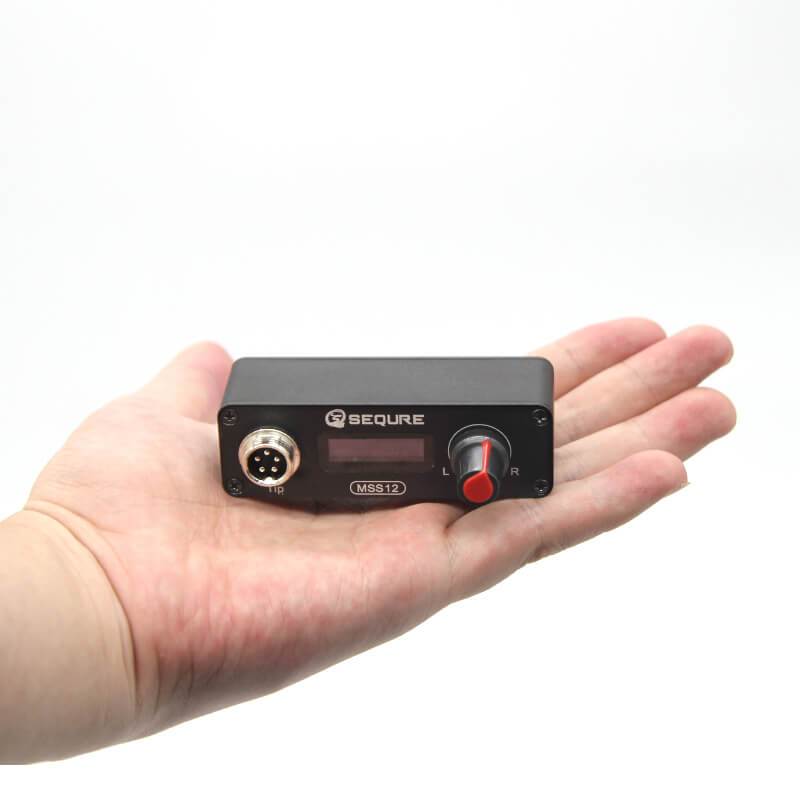

(1) Product Size: 80*43*26mm

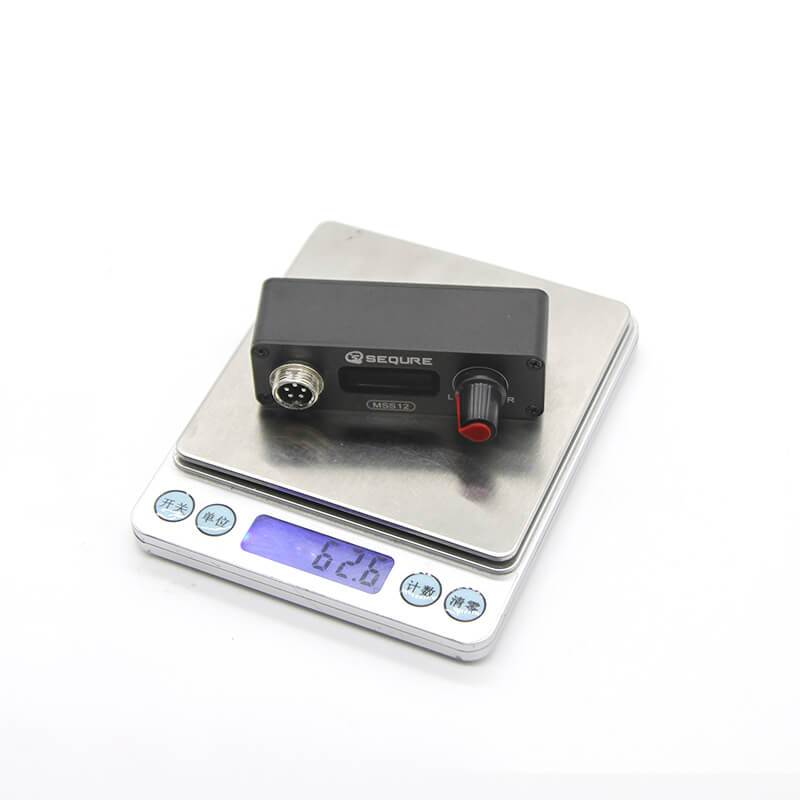

Net Weight Of Product: 63g
Heating Test
| Working Voltage | Power | The fastest time to heat up from 30°C to 300°C |
| 12v | 16w | 37s |
| 19v | 40w | 14s |
| 24v | 65w | 9s |
