Description

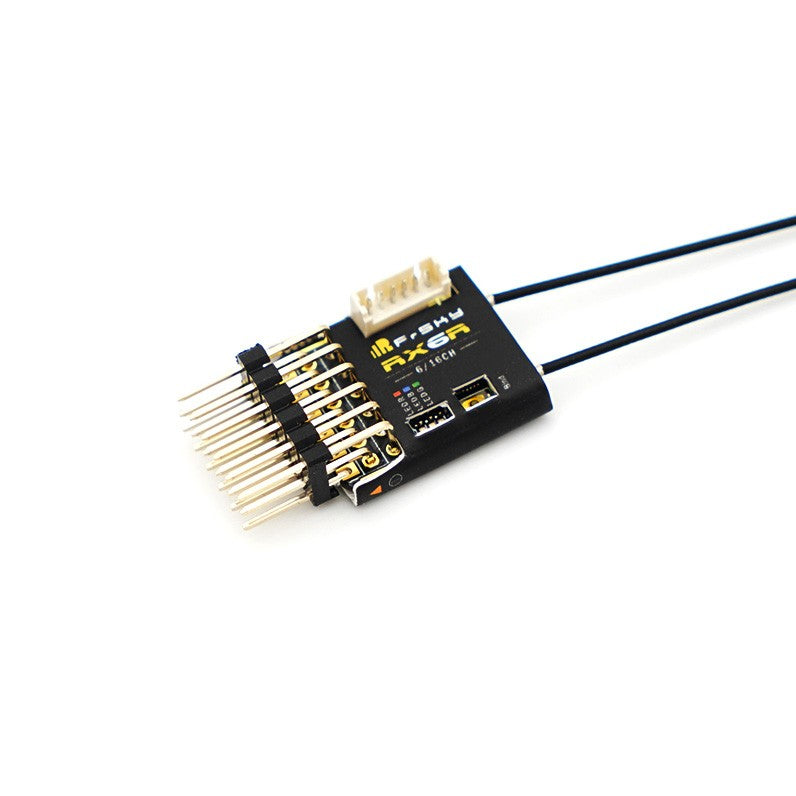

The RX6R is a standalone receiver with all the functions of X6R, it features 6 PWM outputs with extremely high precision and low latency. The latency of PWM output is 9ms less than that of the X6R in high-speed mode. The RX6R features the redundancy function as well, this means you can add another receiver as a back-up in case the first one fails. Last but not least, the RX6R and the whole RX-line has a 40% increase in range compared to the previous X series receivers.
SPECIFICATIONS
- Dimension: 21.1×17×7.3mm (L×W×H)
- Weight: 2.5g / 2.9g (with two antennas)
- Number of Channels: 16CH (1-6CH PWM from conventional channel outputs, 1-16CH from SBUS OUT port)
- Operating Voltage Range: 3.5V-10V
- Operating Current: 100mA@5V
- Operating Range: >2km
- Servo Frame Rate: 9ms (HS—High Speed Mode)/18ms (FS—Normal Speed Mode)
- High sensitivity (40% Increase of the range compared to previous X series receivers)
- Higher precision PWM
- Lower latency PWM
- Lower power consumption
- Supports redundancy function
- Smart Port enabled and supports telemetry data transmission
- Battery voltage detection
- 2 detachable IPEX 4 connector antennas
