Description

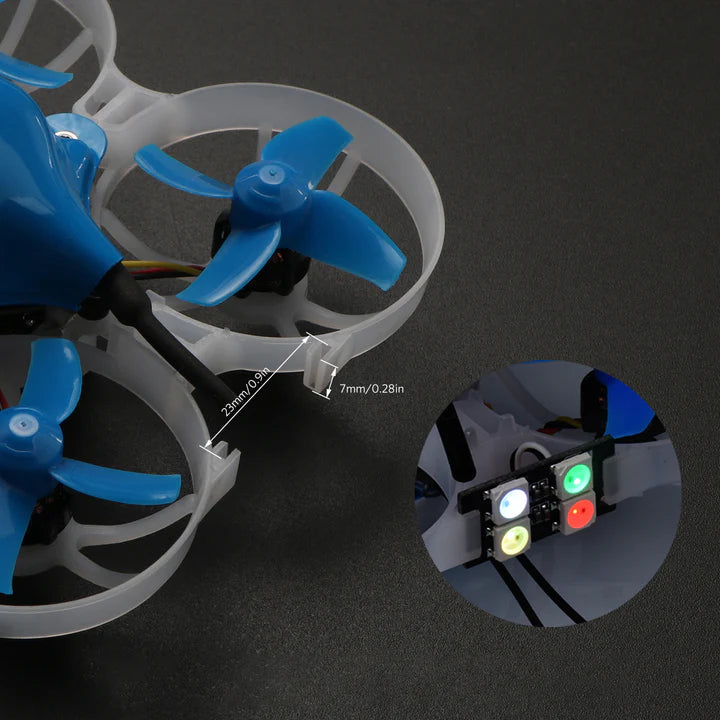

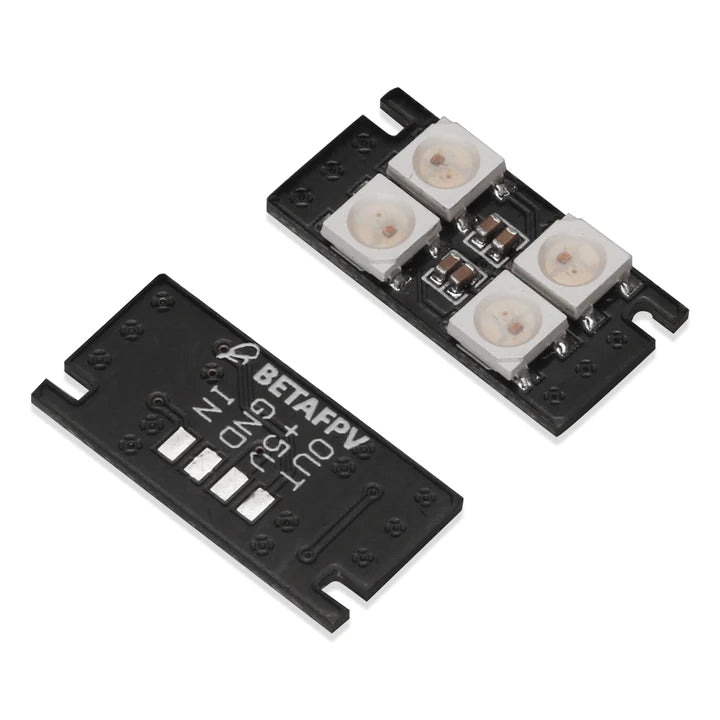

Light up the back of your drone! These LED boards found on the Beta75X and 85X are now available separately! Comes in a pack of two.
SPECIFICATION
- LED: WS2812B-5050
- Size: 23.5mm × 11.4mm
- Voltage: 3.3～5.2V DC
- Support: Betaflight / Cleanflight
- Frame: Beta 75X
- Weight: 1.0g
- Wire Material: Silicone wire coated with tin
- Wire Length: 65mm
- Wire Color: Red, Yellow, Black
HOW TO CONNECT LED BOARD TO FC
V1.1 Version
Go to the CLI tab in Betaflight GUI and copy all the commands below to enable the LED_STRIP, but the TX1 port will be invalid.
resource SERIAL_TX 1 NONE
resource LED_STRIP 1 NONE
resource LED_STRIP 1 A09
save
If the LED still doesn’t work when you set LED_STRIP, please put your FC in DFU mode and reflash. Note that the 5v pad on the led strip can be soldered on the +5v or the Buzz+ of the FC (see diagram).
V1.2 Version
Note that the 5v pad on the led strip can be soldered on the +5v or the Buzz+ of the FC (see diagram).
How to SET UP LED on Betaflight
1.Enable LED Strip in Configuration Tab and click the Save and Reboot button in the lower right corner.
2.Click Wire Ordering Mode
3.You can start to choose the color of the LED now.
Note: You should start to choose the color from the top left corner first otherwise you will fail to set up the color. Don't forget to save all of your setting after you make all of the changes.
PACKAGE

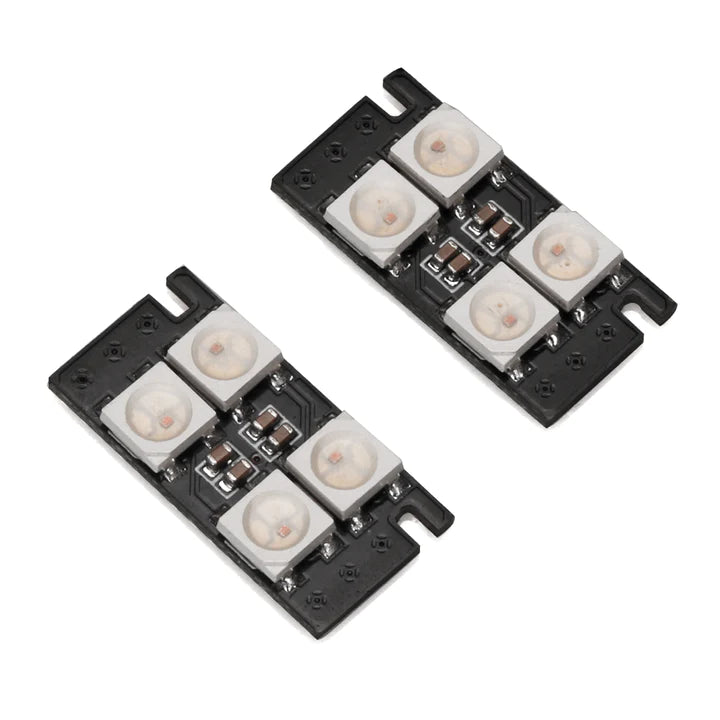

- 2 * LED BOARD
- 2 * Red Wires
- 2 * Yellow Wires
- 2 * Black Wires
