Description
These Irons come equipped with the tip of your choice and include an XT60 cable and bakelite stand!

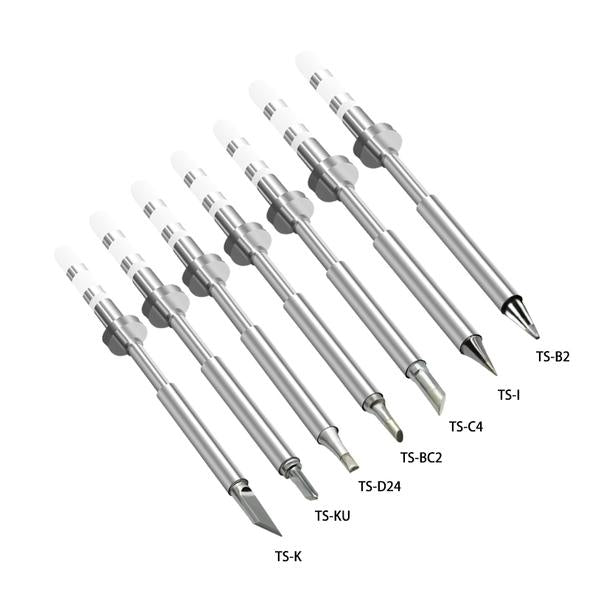

Images may not reflect tip type (please check the chart for tip type)
Why spend extra on on a TS100 when this is the same thing!
USB Power Supply available here

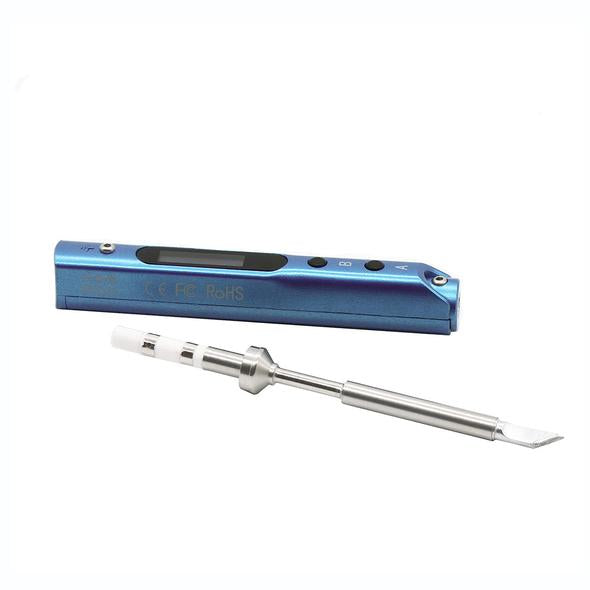

The SQ-001 features the same familiar lightweight design that's easy to assemble and use, easy to disassemble and store, comfortable to handle, easy to operate, and highly efficient! It's a cheaper alternative to the TS-100, that's great for any field kit or bench!
It operates on 12-24V DC. Featuring OLED screen and two key temperature adjustment. When powered from DC 19V 40W it takes only 15 seconds to reach 300 ℃!
The upgraded parts between SQ-001 & TS100:
- 1.Material: Upgraded 304 stainless steel nested ABS + PC shell (more environmentally friendly and better feel)
- 2.Firmware: This upgraded version (flashing the latest and most stable firmware can intelligently control the temperature between 100-400 degrees, the temperature is more stable)
- 3.Handle: The back of the handle is round and the front is smooth.(it is close to a cylinder, the welding is comfortable, and the design is more user-friendly
- 4.Button: This upgrades is round shape
- 5.Double Side: Full screen printing (full screen printing upgrade)
- 6.This version includes a free bakelite soldering iron frame & power cord!
Controller: SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, Antistatic structure. The perfect combination of embedded STM32 processor, dual temperature sensor and acceleration transmitter. Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over temperature alarm and other functions. Heating end The heating end adopts internal heating core Factory preset temperature: 300 ℃ Temperature stability range: ± 2% External independent power supply: DC 5525 power interface, suitable for DC 12-24v notebook power supply, vehicle power supply and mobile power supply. Micro USB interface: set temperature rise curve, user defined function key and firmware upgrade function through parameter file. Additional functions: application layer open source design. You can change the internal parameter settings according to your own needs to meet more and more performance needs of different customers.
Safety Instructions
- 1. Please use ground clamp, proper power supply and other accessories to ensure safe use.
- 2. When SQ-001 is used for the first time, it may slightly smoke due to heating of electric heating element, which is normal Phenomenon.
- 3. If SQ-001 is used continuously for more than 350 ° C for 40 minutes, the handle temperature of soldering iron will reach 50°C~60°C.
- 4. When SQ-001 temperature rises, do not contact the iron head to avoid scalding.
- 5. When SQ-001 is powered on, the iron head cannot be replaced.
Includes
- 1x SQ-001 Controller
- 1x Your Choice of Solder Tip (select from drop down menu before adding to cart)
- 1x Safety Instructions
- 1x Hex Key
- 1x User Manual
- 1x DC5525 XT60 Power Cable
- 1x Mini-bakelite Stand Holder
