Description

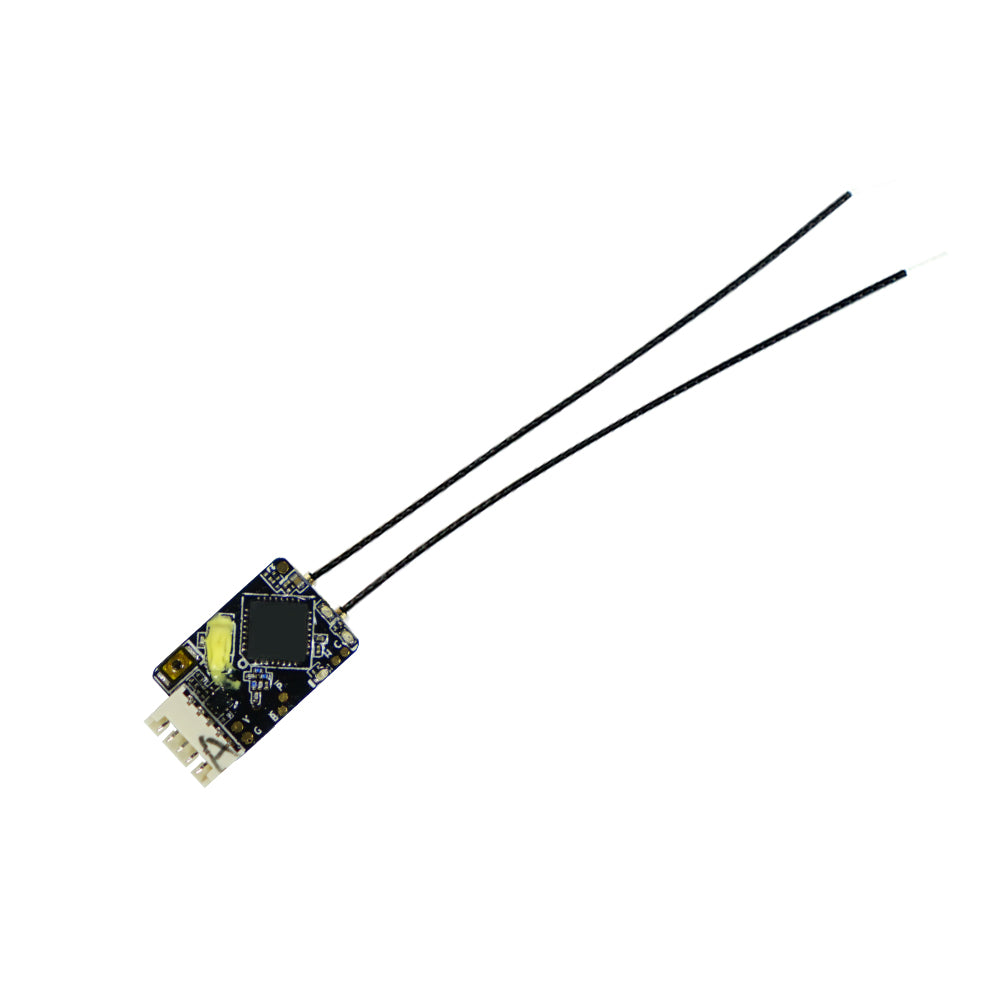

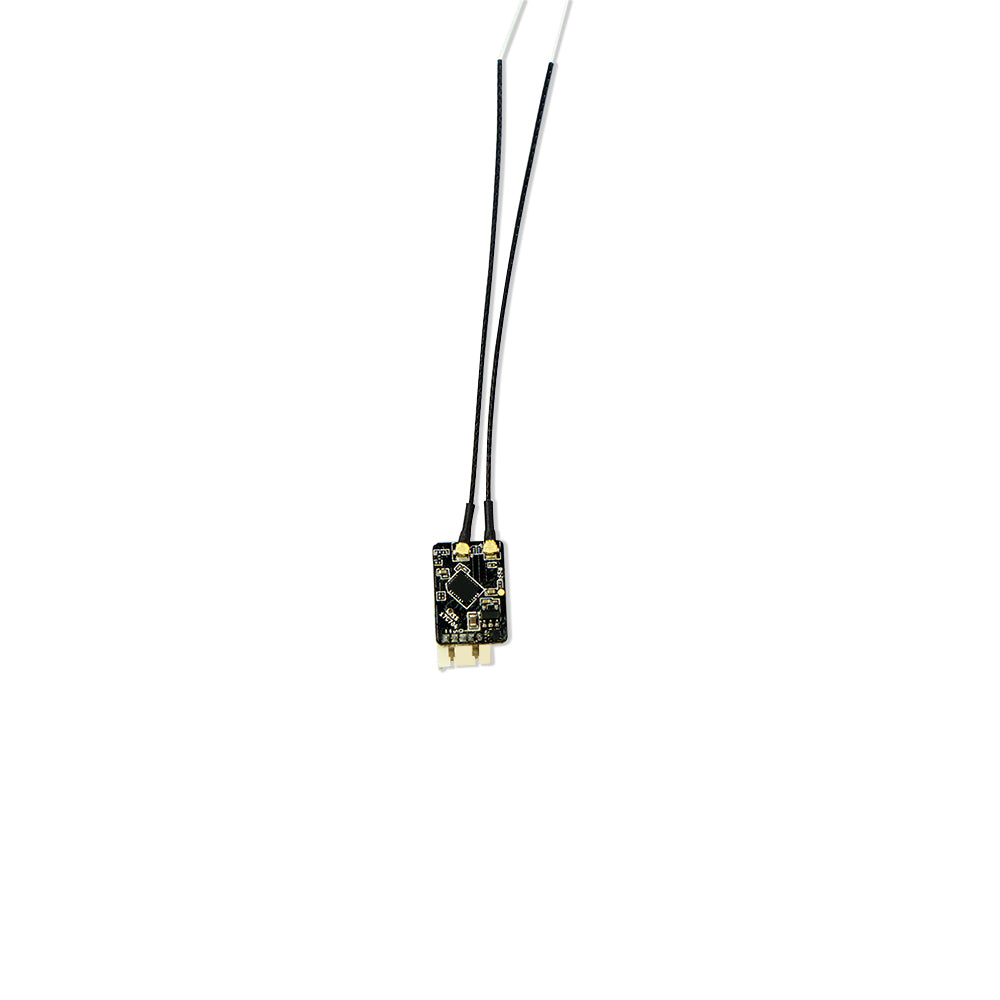

FrSKY R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM
The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver.
The R-XSR is a standalone receiver with all the functionality of the full-size XSR (including telemetry) but at 1/3 size and weight of XSR receiver. The R-XSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.
Features;
- Ultra mini size and lightweight
- Support telemetry and Smart Port enabled
- Full range
- Switchable SBUS/ CPPM signal output
- Supports redundancy function
- IPEX connector, replaceable antennas
Specifications;
- Dimension: 16*11*5.4mm (L*W*H)
- Weight: 1.5g
- Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
- Operating Voltage Range: 4~10V
- Firmware Upgradable
- Compatibility: FrSky X Series modules and radios in D16 mode - (not EU_LBT)
FrSKY R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM
Note that this receiver will be flashed with V2.1 firmware. which is not compatible with Frsky radios that are not the 2019 ACCESS versions.
To use radios that are previous versions you will need to downgrade the firmware.
