Foxeer DC5-24V Super Mini 520TVL CMOS FPV Camera Low 0.008lux

Name: Foxeer DC5-24V Super Mini 520TVL CMOS FPV Camera Low 0.008lux
Brand: Foxeer
SKU: HS1188
Price: 14.95 AUD
Availability: InStock

Save 40%

FoxeerSKU: HS1188

Price:

$14.95 $24.95

Shipping calculated at checkout

Stock:

Only 1 unit left

Quantity:

Add to Wishlist

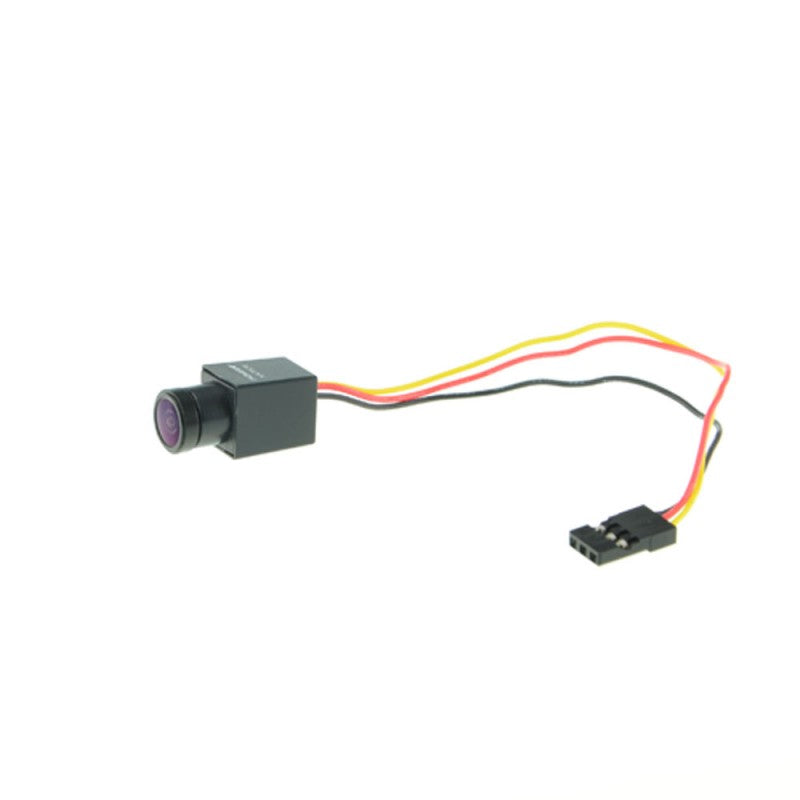

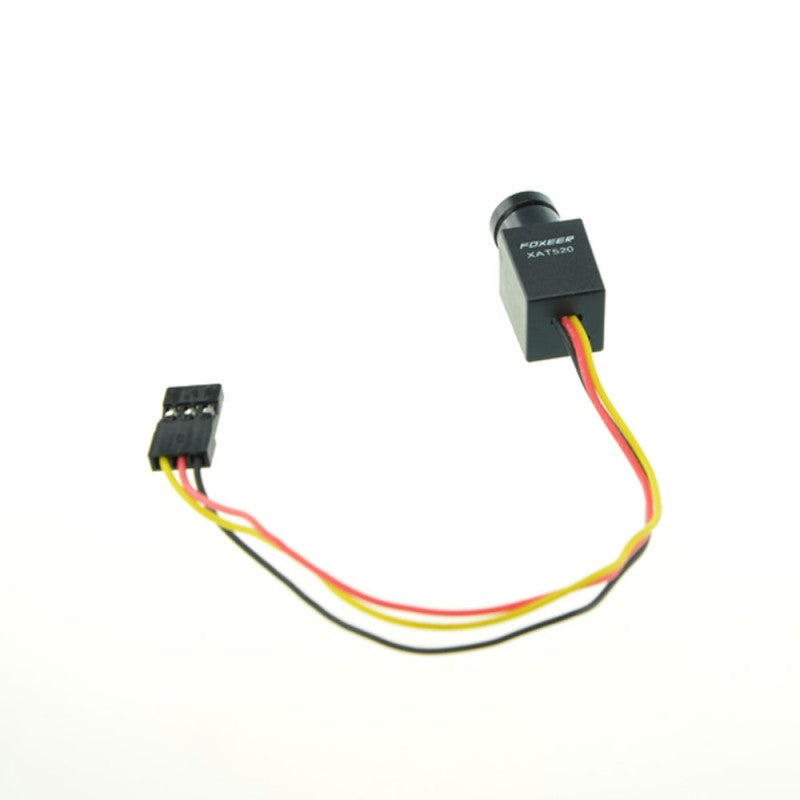

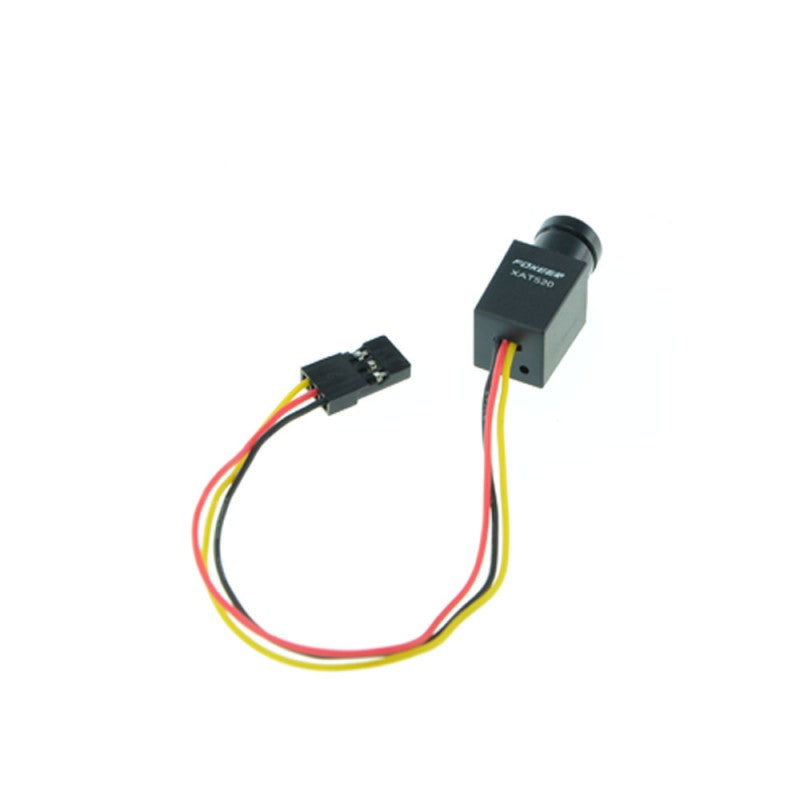

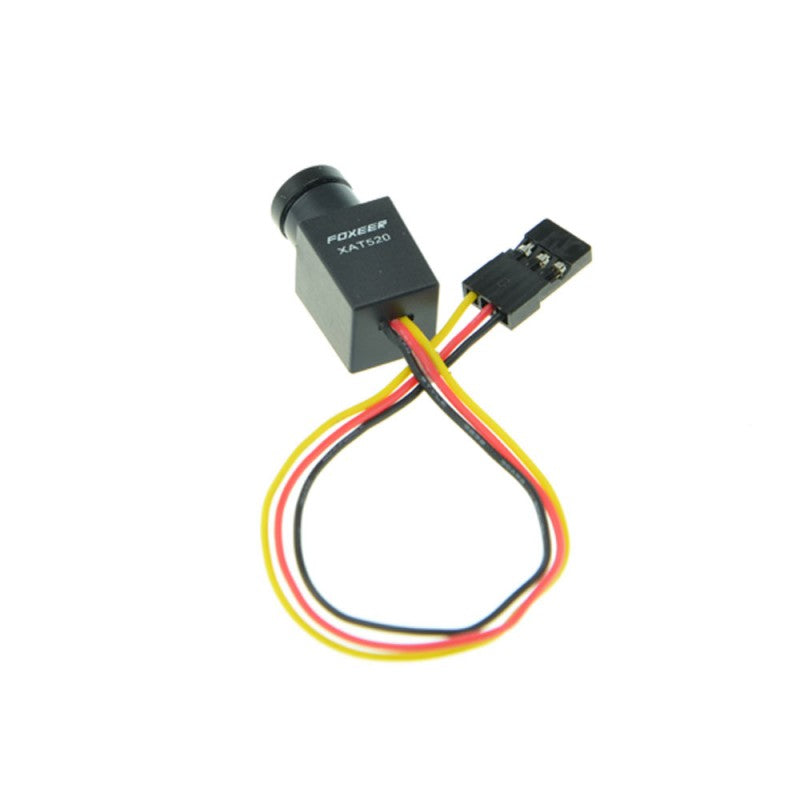

The Foxeer Super Mini 520TVL CMOS Camera is an ultra small high definition FPV camera with excellent night vision. It features 11.8X11.8X24.5mm size, 4.5g weight as well as 5~24V wide voltage. Very easy to install and conceal, Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.

Specifications

Sensor Type Sony 1/3" CMOS Sensor
Pixel NTSC: PAL: 786(H)×576(V)
Tv System PAL
Resolution 520TVL
Scanning System 2:1 Interlace
Video Output CVBS Analog Signal
Minimum Illumination 0.008Lux/F1.2
S/N Ratio 52dB
ELECTRONIC SHUTTER AUTO(1/60 S TO 1/100000 S)/OUT (1/50 S TO 1/100000)S
Operation Temperature 100dB
DAY/NIGHT - 10° C ~ +50°C, less than 90% RH
Connection PIN1-Red DC PIN2-Black GND PIN3-Yellow Video
Input Voltage 5V-24V
Current 60mA
Dimension 11.8mm x 11.8mm x 24.5mm
Weight 4.5g
